YCM TV series
Robust Box Way, T-Shaped Base, VMC's with 50 Taper Spindles for Demanding Machining Requirements.

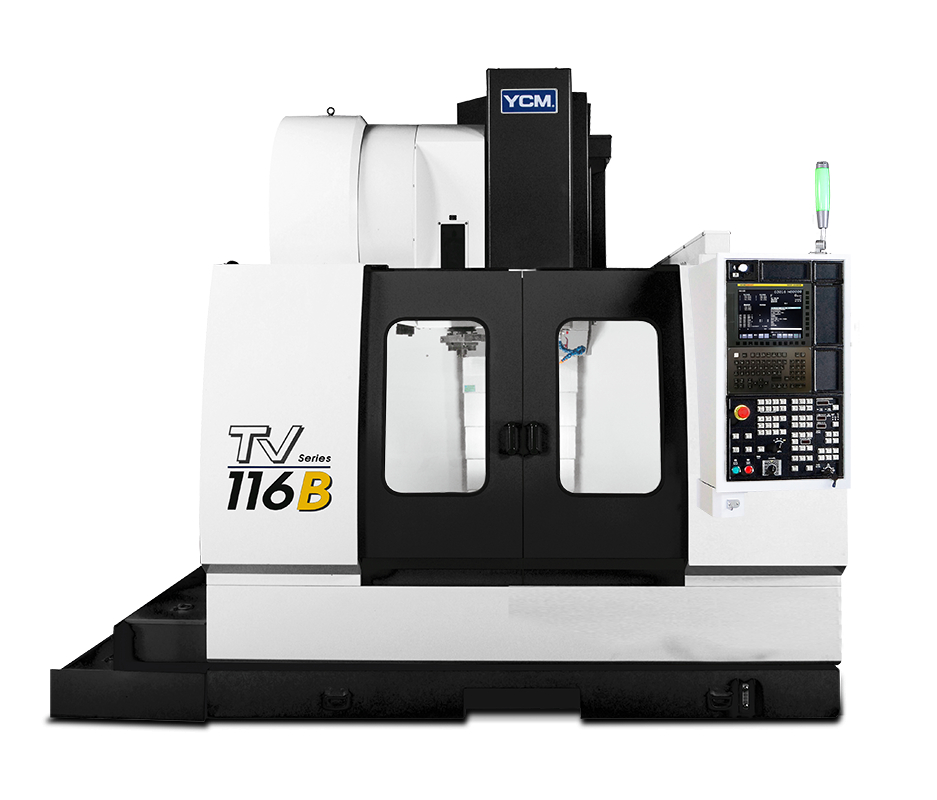

| Product Name | unit | TV116B |
| Spindle | ||
| Spindle Speed (Opt.) | rpm | 6,000 (10,000) |
| Spindle Power (Opt.) | kW | 25 (45) |
| Spindle Taper (Opt.) | BT50 (BBT50) | |
| Travel | ||
| X-axis Travel | mm | 1,100 |
| Y-axis Travel | mm | 600 |
| Z-axis Travel | mm | 630 |
| Distance Between Spindle Nose & Table Top | mm | 168~798 (418~1,048) |
| Table | ||
| Table Size | mm | 1,200 x 600 (1,200 x 560) |
| No. T-slot x Size x Pitch | mm | 5 x 18 x 100 |
| Max. Load on Table | kg | 1,200 (600) |
| Feedrate | ||
| X/Y/Z Rapid Feedrate | m/min. | 16/16/16 |
| Cutting Feedrate | mm/min. | 1~5,000 |
| ATC | ||
| Tool Magazine Capacity (Opt.) | T | 24 (32/40) |
| Tool Weight | kg/pc | 20 |
| Max. Tool Dimension (W/O Adjacent Tools) | mm |
24T : ø110 x 350 (ø190 x 350) 30T/40T : ø120 x 350 (ø240 x 350) |
| General | ||
| Machine Weight | kg | 11,200 |

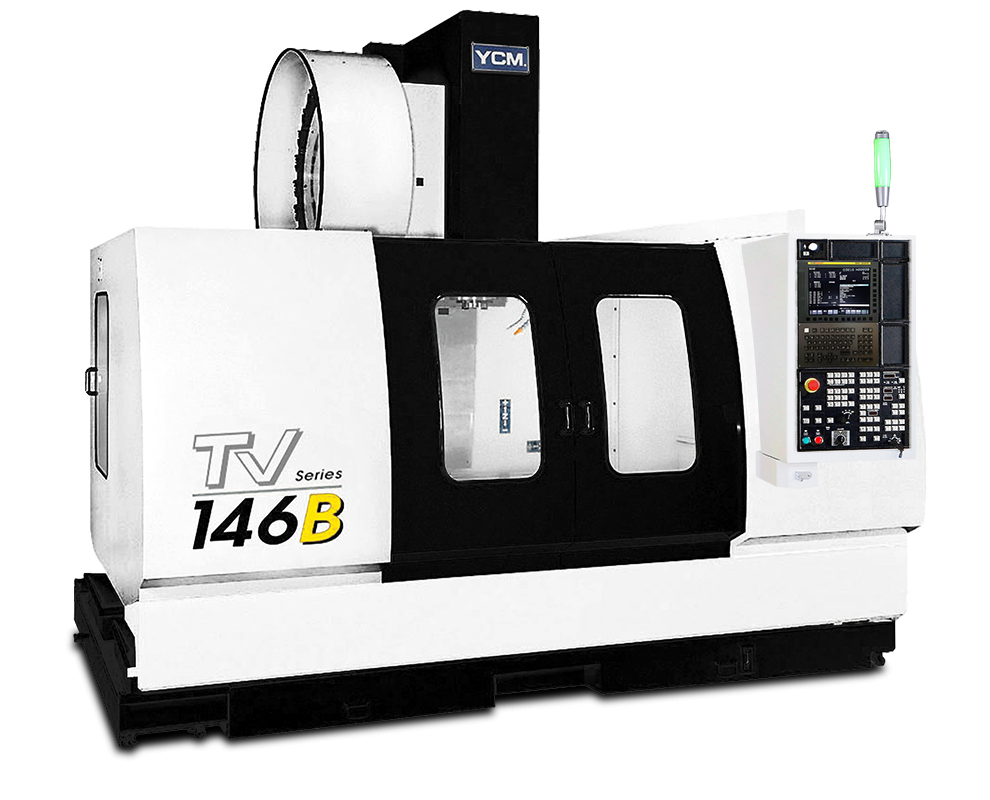

| Product Name | unit | TV146B |
| Spindle | ||
| Spindle Speed (Opt.) | rpm | 6,000 (10,000) |
| Spindle Power (Opt.) | kW | 25 (45) |
| Spindle Taper (Opt.) | BT50 (BBT50) | |
| Travel | ||
| X-axis Travel | mm | 1,400 |
| Y-axis Travel | mm | 620 |
| Z-axis Travel | mm | 630 |
| Distance Between Spindle Nose & Table Top | mm | 153~783 (403~1,033) |
| Table | ||
| Table Size | mm | 1,500 x 600 |
| No. T-slot x Size x Pitch | mm | 5 x 18 x 100 |
| Max. Load on Table | kg | 1,500 |
| Feedrate | ||
| X/Y/Z Rapid Feedrate | m/min. | 16/16/16 |
| Cutting Feedrate | mm/min. | 1~5,000 |
| ATC | ||
| Tool Magazine Capacity (Opt.) | T | 24 (32/40) |
| Tool Weight | kg/pc | 20 |
| Max. Tool Dimension (W/O Adjacent Tools) | mm |
24T : ø110 x 350 (ø190 x 350) 30T/40T : ø120 x 350 (ø240 x 350) |
| General | ||
| Machine Weight | kg | 12,300 |
