YCM NXV series
High Productivity General Purpose VMC's

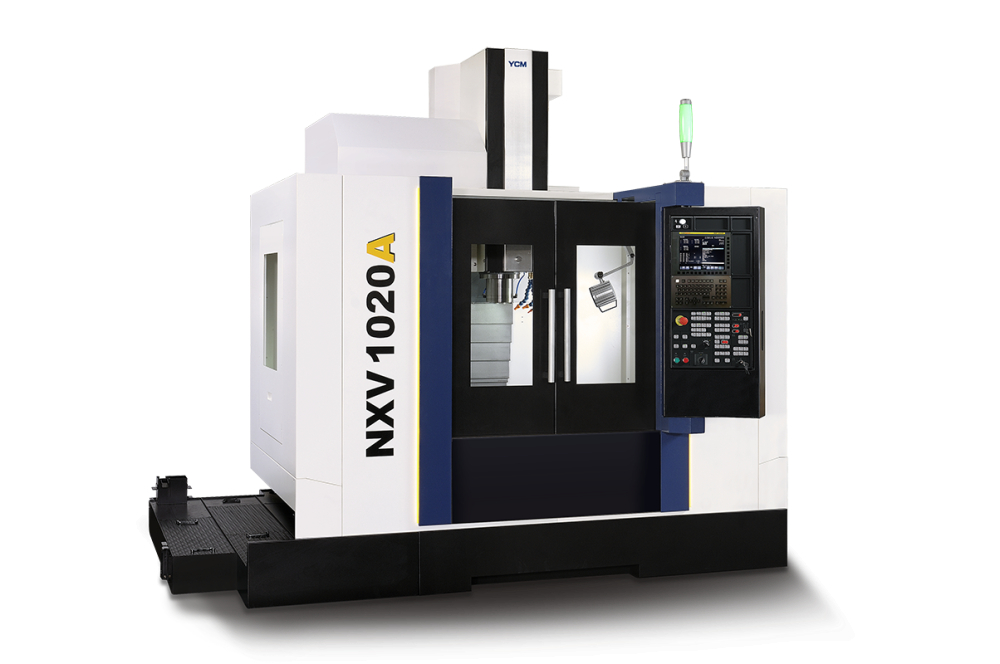

| Product Name | unit | NXV1020A |
| Spindle | ||
| Spindle Speed (Opt.) | rpm | 12,000 (15,000) |
| Spindle Power (Opt.) | kW | 18.5 (18.5) |
| Spindle Taper (Opt.) | BBT40 | |
| Travel | ||
| X-axis Travel | mm | 1,020 |
| Y-axis Travel | mm | 520 |
| Z-axis Travel | mm | 540 |
| Distance Between Spindle Nose & Table Top | mm | 140~680 |
| Table | ||
| Table Size | mm | 1,120 x 520 |
| No. T-slot x Size x Pitch | mm | 5 x 18 x100 |
| Max. Load on Table | kg | 500 |
| Feedrate | ||
| X/Y/Z Rapid Feedrate | m/min. | 48/48/32 |
| Cutting Feedrate | mm/min. | 1~20,000 |
| ATC | ||
| Tool Magazine Capacity (Opt.) | T | 24 (30/40) |
| Tool Weight | kg/pc | 6 |
| Max. Tool Dimension (W/O Adjacent Tools) | mm | 24T : ø90 x 300 (ø140 x 300) 30T/40T : ø76 x 300 (ø125 x 300) |
| General | ||
| Machine Weight | kg | 5,350 |

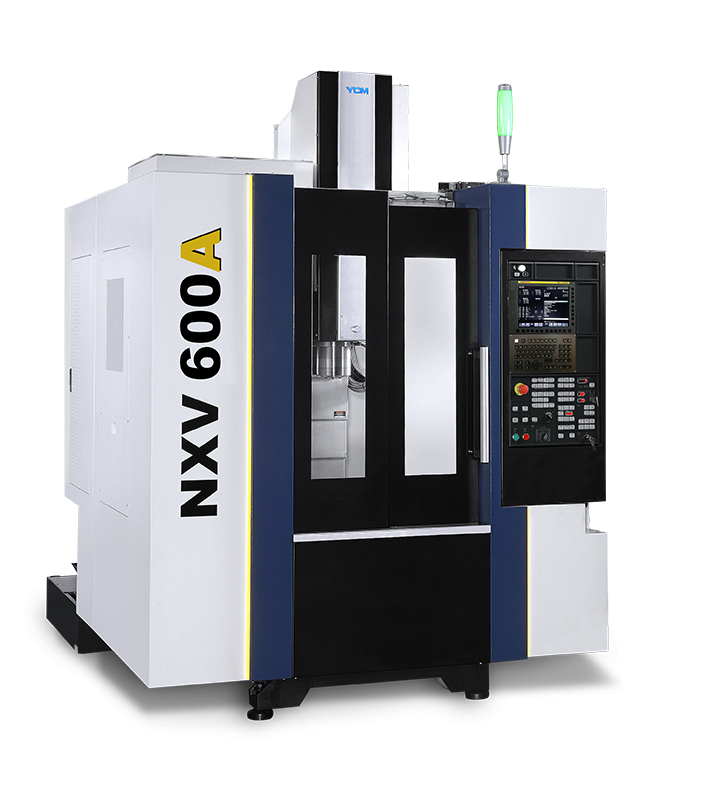

| Product Name | unit | NXV600A |
| Spindle | ||
| Spindle Speed (Opt.) | rpm | 12,000(15,000) |
| Spindle Power (Opt.) | kW | 18.5 (18.5) |
| Spindle Taper (Opt.) | BBT40 | |
| Travel | ||
| X-axis Travel | mm | 600 |
| Y-axis Travel | mm | 410 |
| Z-axis Travel | mm | 450 |
| Distance Between Spindle Nose & Table Top | mm | 110~560 |
| Table | ||
| Table Size | mm | 700×420 |
| No. T-slot x Size x Pitch | mm | 3×14×100 |
| Max. Load on Table | kg | 300 |
| Feedrate | ||
| X/Y/Z Rapid Feedrate | m/min. | 48/48/48 |
| Cutting Feedrate | mm/min. | 1~20,000 |
| ATC | ||
| Tool Magazine Capacity (Opt.) | T | 24 |
| Tool Weight | kg/pc | 6 |
| Max. Tool Dimension (W/O Adjacent Tools) | mm | ø76 x 250(ø125 x 250) |
| General | ||
| Machine Weight | kg | 3,000 |
