YCM NSV series
Most Popular High Performance VMC's. Well Suited for Superior Surface Finishing Works.

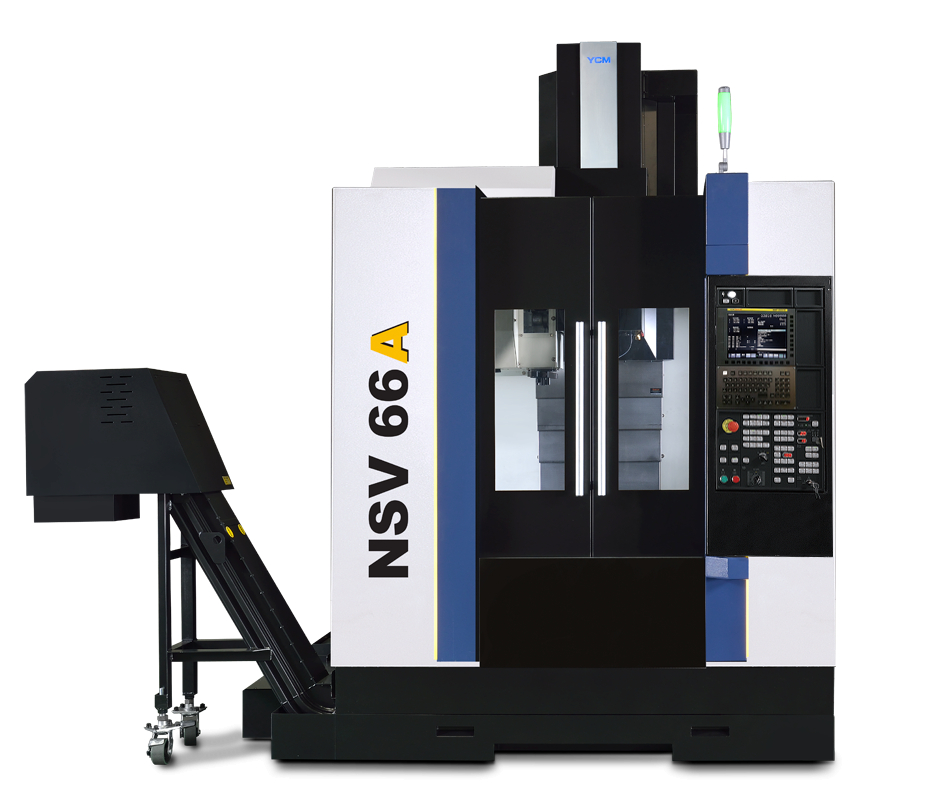

| Product Name | unit | NSV66A |
| Spindle | ||
| Spindle Speed (Opt.) | rpm | 12,000 (15,000) |
| Spindle Power (Opt.) | kW | 25 (25) |
| Spindle Taper (Opt.) | BBT40 | |
| Travel | ||
| X-axis Travel | mm | 660 |
| Y-axis Travel | mm | 510 |
| Z-axis Travel | mm | 560 |
| Distance Between Spindle Nose & Table Top | mm | 100~660 |
| Table | ||
| Table Size | mm | 840 x 560 |
| No. T-slot x Size x Pitch | mm | 5 x 18 x 100 |
| Max. Load on Table | kg | 500 |
| Feedrate | ||
| X/Y/Z Rapid Feedrate | m/min. | 50/50/48 |
| Cutting Feedrate | mm/min. | 1~20,000 |
| ATC | ||
| Tool Magazine Capacity (Opt.) | T | 30 |
| Tool Weight | kg/pc | 6 |
| Max. Tool Dimension (W/O Adjacent Tools) | mm | ø76 x 300 (ø125 x 300) |
| General | ||
| Machine Weight | kg | 6,500 |

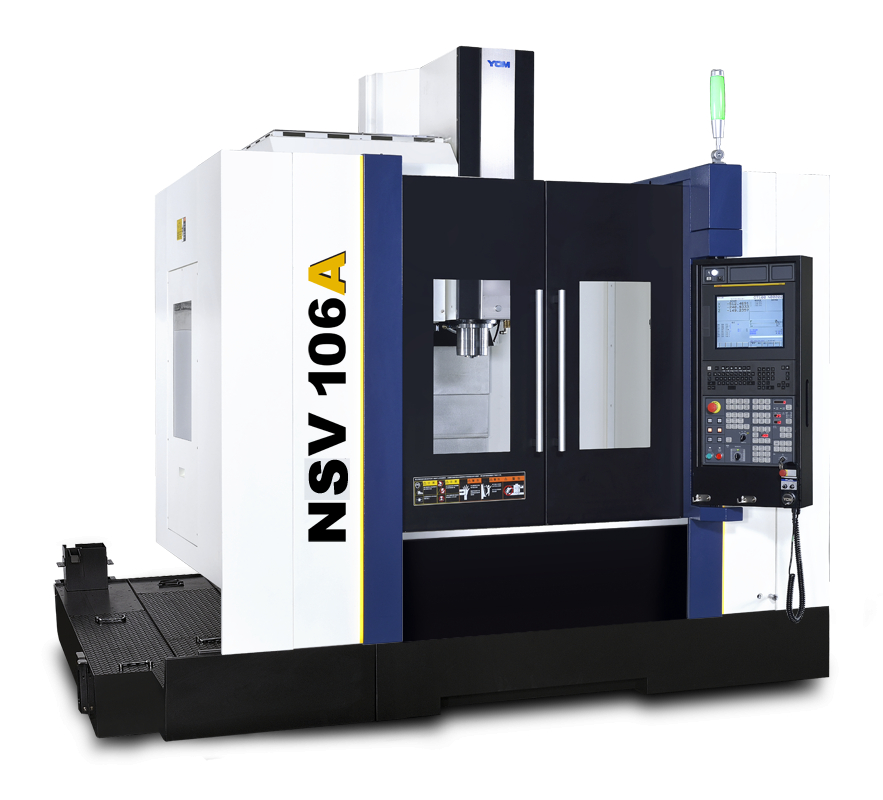

| Product Name | unit | NSV106A |
| Spindle | ||
| Spindle Speed (Opt.) | rpm | 12,000 (15,000) |
| Spindle Power (Opt.) | kW | 18.5 |
| Spindle Taper (Opt.) | BBT40 | |
| Travel | ||
| X-axis Travel | mm | 1,020 |
| Y-axis Travel | mm | 600 |
| Z-axis Travel | mm | 600 |
| Distance Between Spindle Nose & Table Top | mm | 100~700 |
| Table | ||
| Table Size | mm | 1,120 x 650 |
| No. T-slot x Size x Pitch | mm | 6 x 18 x 100 |
| Max. Load on Table | kg | 700 |
| Feedrate | ||
| X/Y/Z Rapid Feedrate | m/min. | 48/48/32 |
| Cutting Feedrate | mm/min. | 1~20,000 |
| ATC | ||
| Tool Magazine Capacity (Opt.) | T | 24 (30/48) |
| Tool Weight | kg/pc | 6 |
| Max. Tool Dimension (W/O Adjacent Tools) | mm | ø76 x 300 (ø125 x 300) |
| General | ||
| Machine Weight | kg | 7,000 |
