YCM NMV Series
The NMV Series Heavy-Duty Machining Centers, featuring an over-sized Meehanite® casting and box guideways, are specially designed for maximum Material Removal Rates in hard materials.

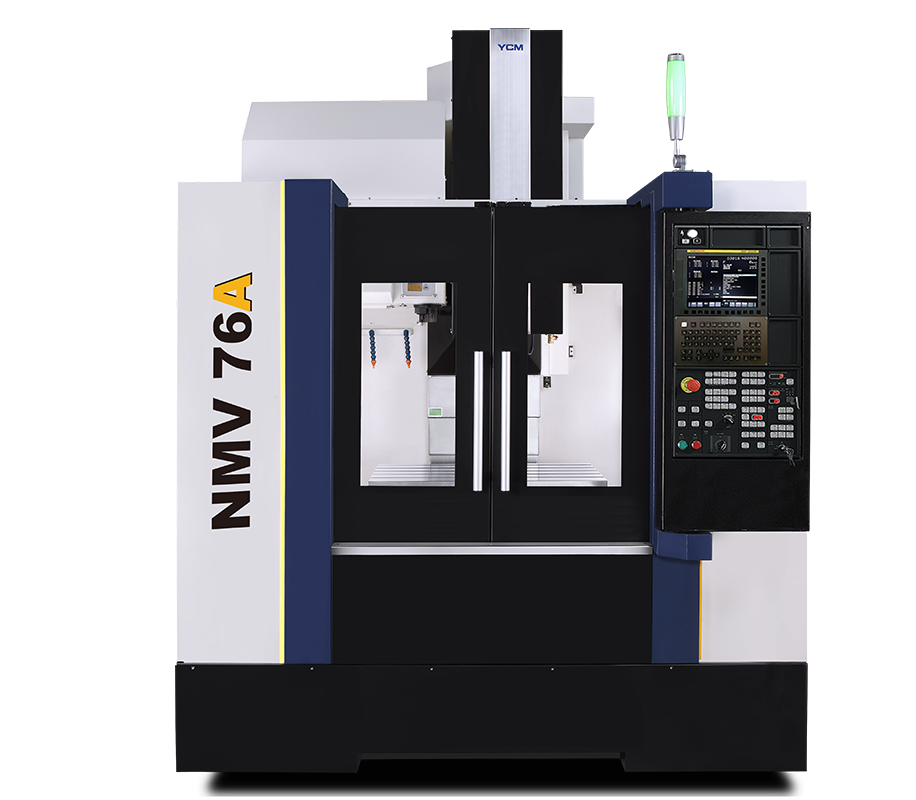

| Product Name | unit | NMV76A |
| Spindle | ||
| Spindle Speed (Opt.) | rpm | 12,000 (8,000 / 10,000 GEAR BOX) |
| Spindle Power (Opt.) | kW | 18.5 (18.5/18.5) |
| Spindle Taper (Opt.) | BBT40 | |
| Travel | ||
| X-axis Travel | mm | 762 |
| Y-axis Travel | mm | 510 |
| Z-axis Travel | mm | 560 |
| Distance Between Spindle Nose & Table Top | mm | 120~680 |
| Table | ||
| Table Size | mm | 915 x 560 |
| No. T-slot x Size x Pitch | mm | 5 x 18 x100 |
| Max. Load on Table | kg | 500 |
| Feedrate | ||
| X/Y/Z Rapid Feedrate | m/min. | 36/36/24 |
| Cutting Feedrate | mm/min. | 1~20,000 |
| ATC | ||
| Tool Magazine Capacity (Opt.) | T | 24 (30) |
| Tool Weight | kg/pc | 6 |
| Max. Tool Dimension (W/O Adjacent Tools) | mm | ø90 x 300 |
| General | ||
| Machine Weight | kg | 5,100 |

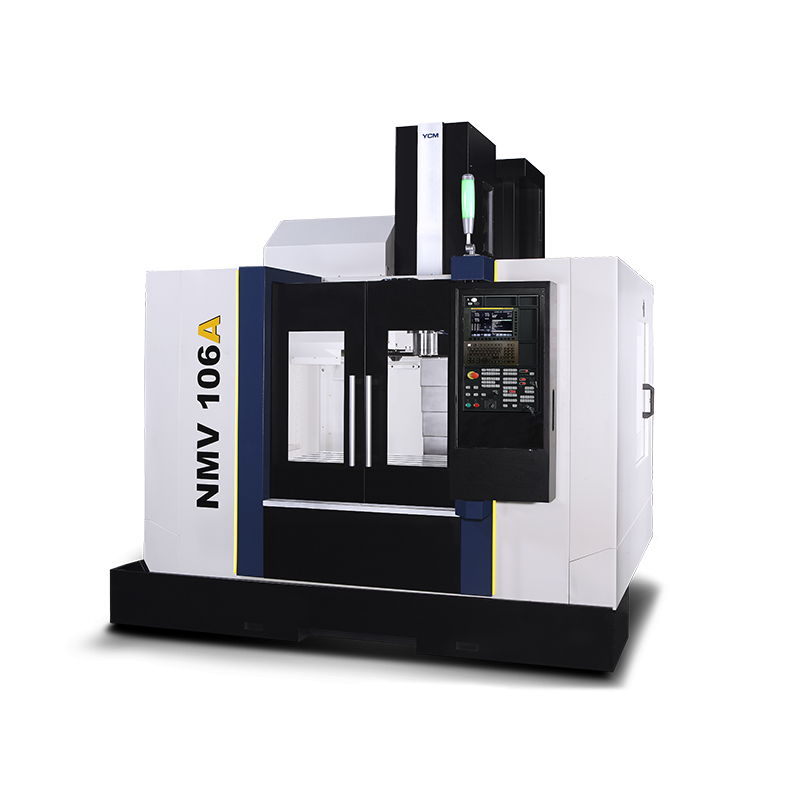

| Product Name | unit | NMV106A |
| Spindle | ||
| Spindle Speed (Opt.) | rpm | 12,000 (8,000 / 10,000 GEAR BOX) |
| Spindle Power (Opt.) | kW | 18.5(18.5/18.5) |
| Spindle Taper (Opt.) | BBT40 | |
| Travel | ||
| X-axis Travel | mm | 1,020 |
| Y-axis Travel | mm | 600 |
| Z-axis Travel | mm | 600 |
| Distance Between Spindle Nose & Table Top | mm | 80~680(330~930) |
| Table | ||
| Table Size | mm | 1,120 x 600 |
| No. T-slot x Size x Pitch | mm | 5 x 18 x 100 |
| Max. Load on Table | kg | 800 |
| Feedrate | ||
| X/Y/Z Rapid Feedrate | m/min. | 36/36/24 |
| Cutting Feedrate | mm/min. | 1~20,000 |
| ATC | ||
| Tool Magazine Capacity (Opt.) | T | 24 (30/40) |
| Tool Weight | kg/pc | 6 |
| Max. Tool Dimension (W/O Adjacent Tools) | mm | ø90 x 300 (ø140x 300) |
| General | ||
| Machine Weight | kg | 6,500 |
