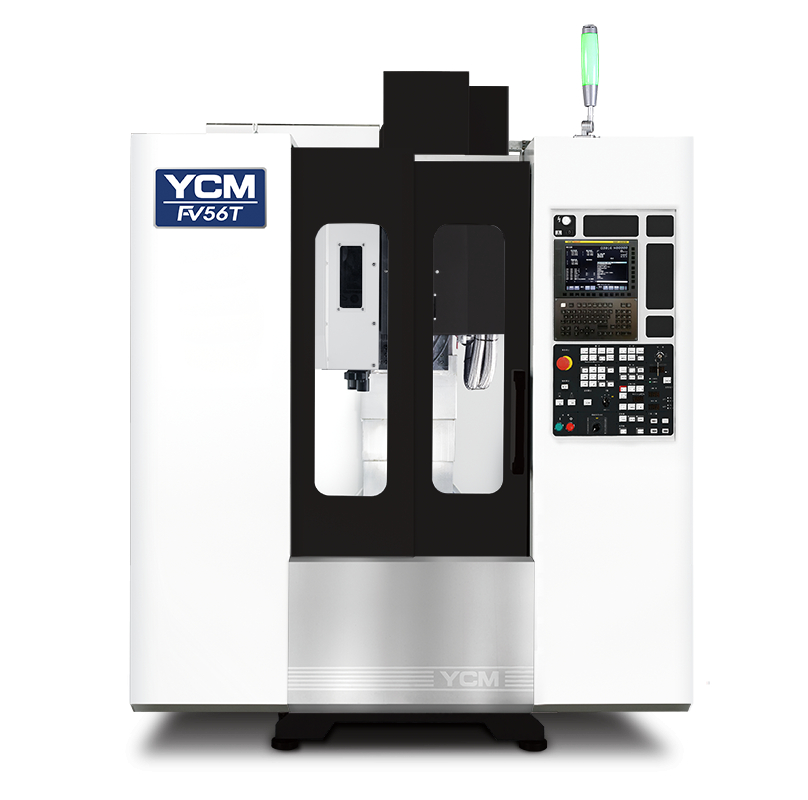

YCM FV series
Speed and Power in a Compact VMC. Well Suited for Mold Work.
| Product Name | unit | FV56T |
| Spindle | ||
| Spindle Speed (Opt.) | rpm | 15,000 |
| Spindle Power (Opt.) | kW | 3.7 |
| Spindle Taper (Opt.) | BBT30 | |
| Travel | ||
| X-axis Travel | mm | 560 |
| Y-axis Travel | mm | 410 |
| Z-axis Travel | mm | 450 |
| Distance Between Spindle Nose & Table Top | mm | 110~560 (110~695) |
| Table | ||
| Table Size | mm | 700 x 420 |
| No. T-slot x Size x Pitch | mm | 3 x 14 x 100 |
| Max. Load on Table | kg | 300 |
| Feedrate | ||
| X/Y/Z Rapid Feedrate | m/min. | 36/36/24 |
| Cutting Feedrate | mm/min. | 1~10,000 |
| ATC | ||
| Tool Magazine Capacity (Opt.) | T | 16 (20) |
| Tool Weight | kg/pc | 4 |
| Max. Tool Dimension (W/O Adjacent Tools) | mm | ø63 x 200(ø100 x 200) |
| General | ||
| Machine Weight | kg | 2,800 |
