YCM NH series
High Production 2-Pallet HMC's with Fast Spindle and Rapid Speeds for Increased Productivity.

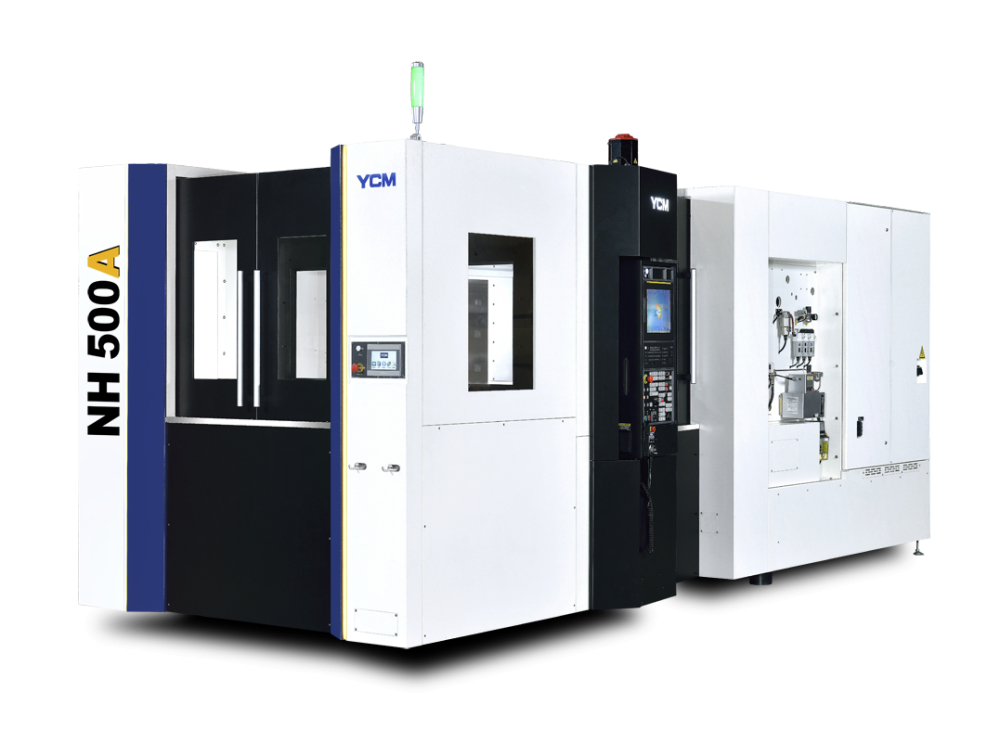

| Product Name | unit | NH500A |
| Spindle | ||
| Spindle Speed (Opt.) | rpm | 15,000 |
| Spindle Power (Opt.) | kW | 37 |
| Spindle Taper (Opt.) | BBT40 | |
| Travel | ||
| X-axis Travel | mm | 800 |
| Y-axis Travel | mm | 730 |
| Z-axis Travel | mm | 800 |
| Distance Between Spindle Center and Table Top | mm | 50~780 |
| Distance Between Spindle Nose & Table Top | mm | 150~950 |
| Table | ||
| Table Size | mm | 500 x 500 |
| Max. Load on Table | kg | 500 |
| Max. Work Dimensions | mm | Ø880 x 1000 |
| Height from Table Top to Floor | mm | 1,174 |
| APC Time | sec | 11 |
| Feedrate | ||
| X/Y/Z Rapid Feedrate | m/min. | 60/60/60 |
| Cutting Feedrate | mm/min. | 1~40,000 |
| ATC | ||
| Tool Magazine Capacity (Opt.) | T | 60(120) |
| Tool Weight | kg/pc | 10 |
| Max. Tool Dimension (W/O Adjacent Tools) | mm | Ø80x400(Ø160x400) |
| General | ||
| Machine Weight | kg | 13,490~14,390 |

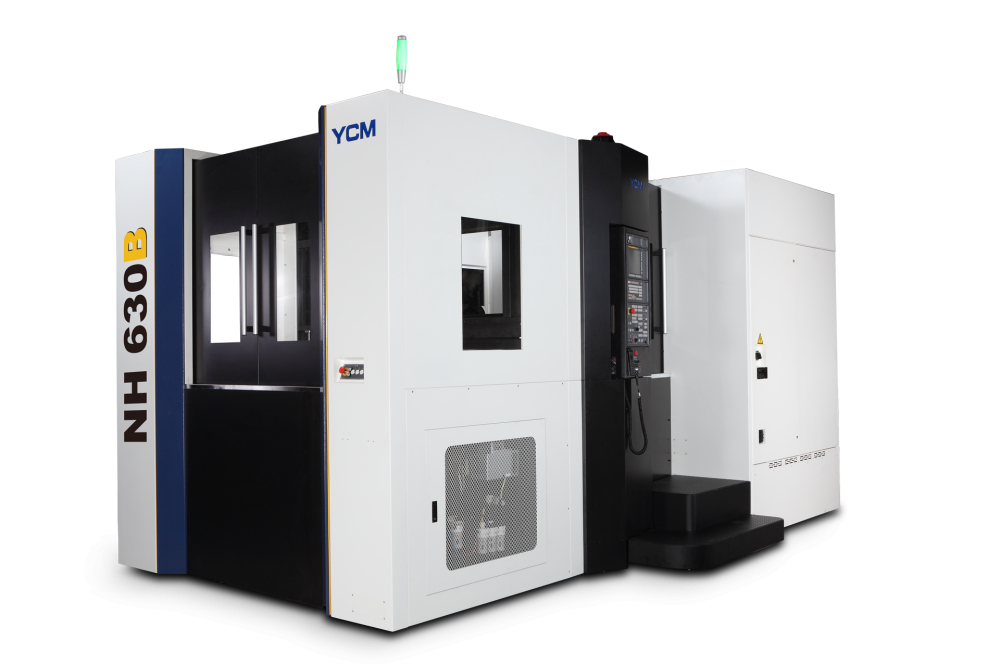

| Product Name | unit | NH630B |
| Spindle | ||
| Spindle Speed (Opt.) | rpm | 10,000 (8,000) |
| Spindle Power (Opt.) | kW | 45 (55) |
| Spindle Taper (Opt.) | BBT50 (CAT) | |
| Travel | ||
| X-axis Travel | mm | 1,050 |
| Y-axis Travel | mm | 850 |
| Z-axis Travel | mm | 850 |
| Distance Between Spindle Center and Table Top | mm | 100~950 |
| Distance Between Spindle Nose & Table Top | mm | 150~1,000 |
| Table | ||
| Table Size | mm | 630 x 630 |
| Max. Load on Table | kg | 1,200 |
| Max. Work Dimensions | mm | ø1,100 x 1,000 |
| Height from Table Top to Floor | mm | 1,325 |
| Table Indexing Angle (Opt.) | 1° (0.001°) | |
| APC Time | sec | 12 |
| Feedrate | ||
| X/Y/Z Rapid Feedrate | m/min. | 60 / 60 / 60 (40 / 40 / 40) |
| Cutting Feedrate | mm/min. | 1~30,000(1~20,000) |
| ATC | ||
| Tool Magazine Capacity (Opt.) | T | 40 ( 60 /120 ) |
| Tool Weight | kg/pc | 25 |
| Max. Tool Dimension (W/O Adjacent Tools) | mm | 40T/60T/120T : ø125 x 500 (ø250 x 500) |
| General | ||
| Machine Weight | kg | 24,000~25,500 |
