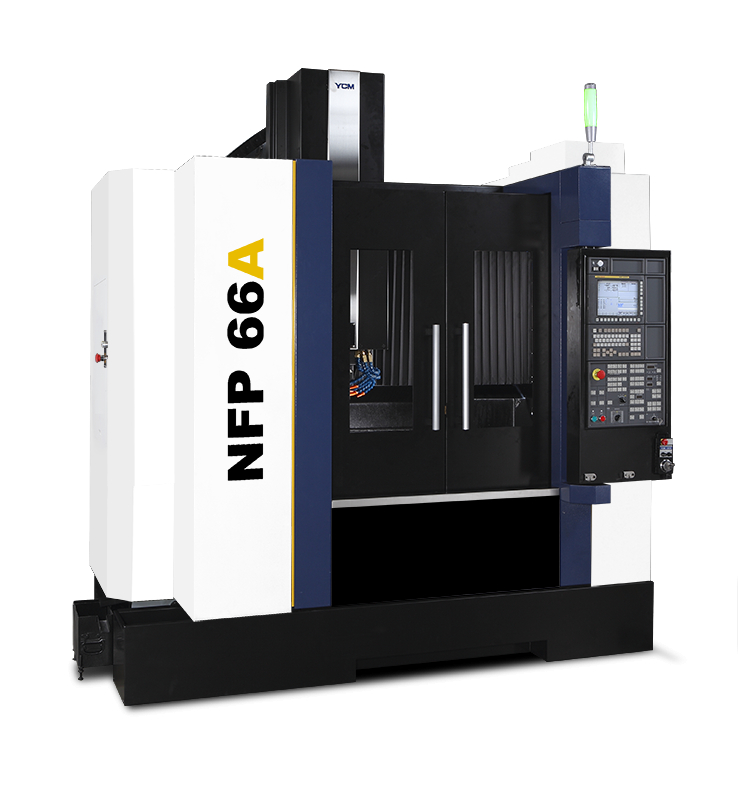

YCM NFP series
Rigid Double Column with High Spindle Speed and Precision in a Compact Footprint. Well Suited for Mold Work.
| Product Name | unit | NFP66A |
| Spindle | ||
| Spindle Speed (Opt.) | rpm | 24,000 (40,000) |
| Spindle Power (Opt.) | kW | 22.5(7.5) |
| Spindle Taper (Opt.) | HSK-A63(HSK-E40) | |
| Travel | ||
| X-axis Travel | mm | 660 |
| Y-axis Travel | mm | 510 |
| Z-axis Travel | mm | 400 |
| Distance Between Spindle Nose & Table Top | mm | 150~550 |
| Distance Between Columns | mm | 960 |
| Table | ||
| Table Size | mm | 800 x 510 |
| No. T-slot x Size x Pitch | mm | 5 x 18 x 100 |
| Max. Load on Table | kg | 500 |
| Feedrate | ||
| X/Y/Z Rapid Feedrate | m/min. | 20/20/20 |
| Cutting Feedrate | mm/min. | 1~20,000 |
| ATC | ||
| Tool Magazine Capacity (Opt.) | T | 24 (24) |
| Tool Weight | kg/pc | 6 |
| Max. Tool Dimension (W/O Adjacent Tools) | mm | 24T：ø76 x 250 (ø125 x 250 ) ( 24T：ø76 x 150 (ø125 x 150 ) ) |
| General | ||
| Machine Weight | kg | 8,000 |
