YCM FP series
Rigid Double Column with Performance and Precision. Well Suited for Mold Work & Graphite Machining.

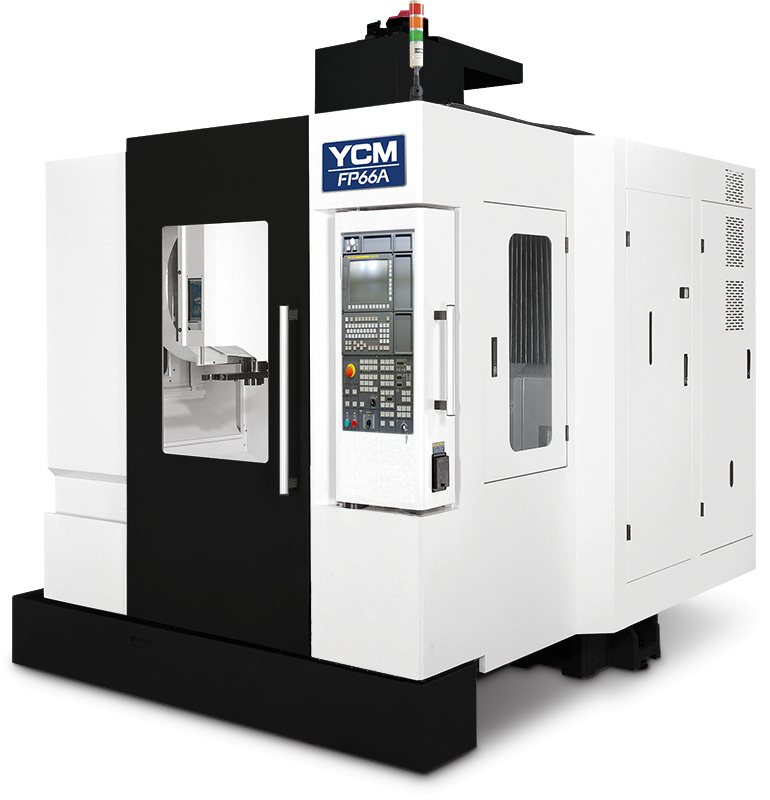

| Product Name | unit | FP66A |
| Spindle | ||
| Spindle Speed (Opt.) | rpm | 16,000(20,000 / 30,000) |
| Spindle Power (Opt.) | kW | 37 (22/11) |
| Spindle Taper (Opt.) | BBT40 (BBT40/BBT30) | |
| Travel | ||
| X-axis Travel | mm | 660 |
| Y-axis Travel | mm | 510 |
| Z-axis Travel | mm | 400 |
| Distance Between Spindle Nose & Table Top | mm | 150~550 |
| Distance Between Columns | mm | 960 |
| Table | ||
| Table Size | mm | 800 x 510 |
| No. T-slot x Size x Pitch | mm | 5 x 18 x 100 |
| Max. Load on Table | kg | 500 |
| Feedrate | ||
| X/Y/Z Rapid Feedrate | m/min. | 20/20/20 |
| Cutting Feedrate | mm/min. | 1~20,000 |
| ATC | ||
| Tool Magazine Capacity (Opt.) | T | 24 (30) |
| Tool Weight | kg/pc | 6 |
| Max. Tool Dimension (W/O Adjacent Tools) | mm | 24T：ø75 x 250 (ø150 x 250 ) ( 30T：ø75 x 250 (ø150 x 250 )) |
| General | ||
| Machine Weight | kg | 8,000 |

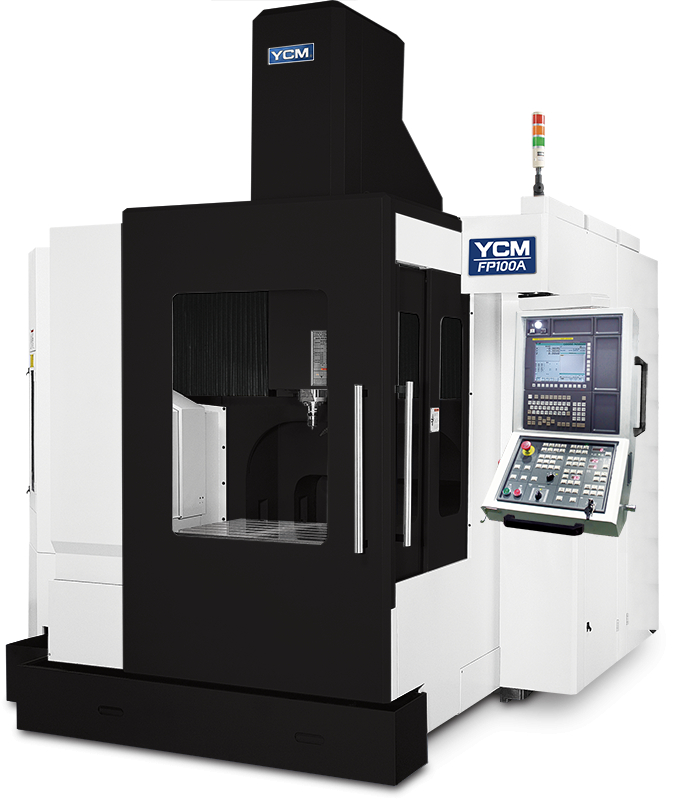

| Product Name | unit | FP100A |
| Spindle | ||
| Spindle Speed (Opt.) | rpm | 16,000 (20,000) |
| Spindle Power (Opt.) | kW | 37 (22) |
| Spindle Taper (Opt.) | BBT40 | |
| Travel | ||
| X-axis Travel | mm | 1,020 |
| Y-axis Travel | mm | 710 |
| Z-axis Travel | mm | 460 |
| Distance Between Spindle Nose & Table Top | mm | 150~610 |
| Distance Between Columns | mm | 1,320 |
| Table | ||
| Table Size | mm | 1,200 x 700 |
| No. T-slot x Size x Pitch | mm | 6 x 18 x 100 |
| Max. Load on Table | kg | 1,000 |
| Feedrate | ||
| X/Y/Z Rapid Feedrate | m/min. | 20/20/20 |
| Cutting Feedrate | mm/min. | 1~20,000 |
| ATC | ||
| Tool Magazine Capacity (Opt.) | T | 24 |
| Tool Weight | kg/pc | 6 |
| Max. Tool Dimension (W/O Adjacent Tools) | mm | ø75 x 250 (ø150 x 250 ) |
| General | ||
| Machine Weight | kg | 12,000 |
