YCM DCV series
3-Axis & 5-Axis Double Column Machines for Extra-Large Parts and Precision Contouring.

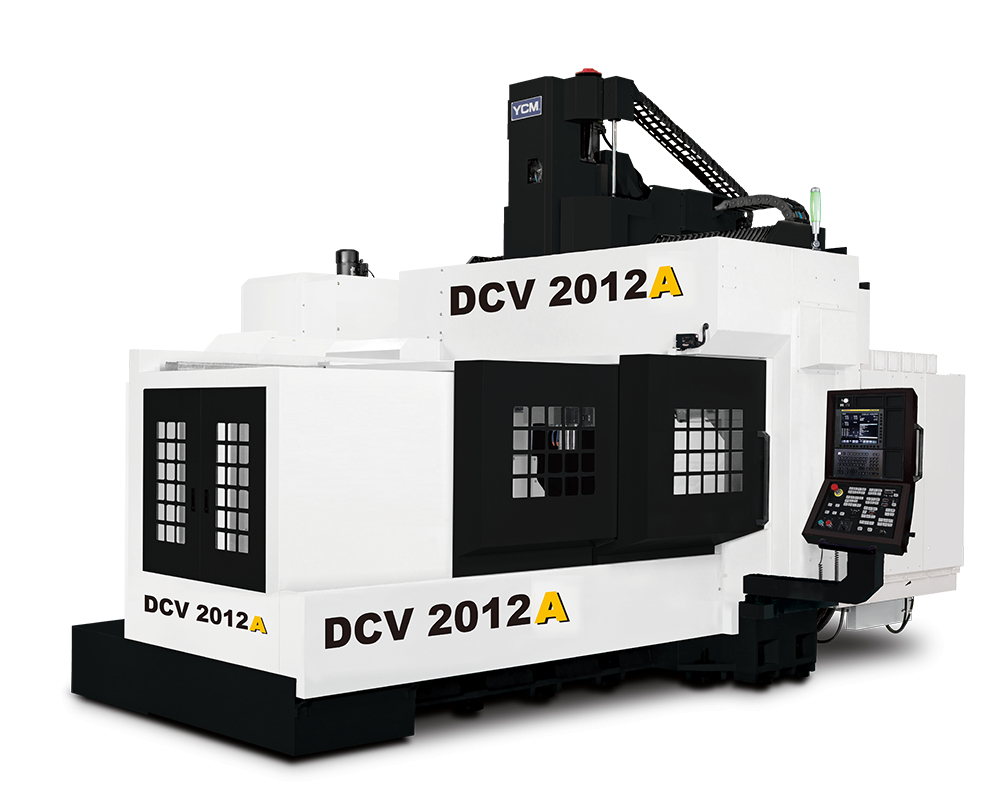

| Product Name | unit | DCV2012A |
| Spindle | ||
| Spindle Speed (Opt.) | rpm | 20,000 |
| Spindle Power (Opt.) | kW | 22 |
| Spindle Taper (Opt.) | BBT40 | |
| Travel | ||
| X-axis Travel | mm | 2000 |
| Y-axis Travel | mm | 1200 |
| Z-axis Travel | mm | 600 |
| Distance Between Spindle Nose & Table Top | mm | 100~700 |
| Distance Between Columns | mm | 1,340 |
| Table | ||
| Table Size | mm | 2,000 x 1,100 |
| No. T-slot x Size x Pitch | mm | 7 x 22 x 150 |
| Max. Load on Table | kg | 4,000 |
| Feedrate | ||
| X/Y/Z Rapid Feedrate | m/min. | 24/24/15 |
| Cutting Feedrate | mm/min. | 1~10,000 |
| ATC | ||
| Tool Magazine Capacity (Opt.) | T | 24 (30) |
| Tool Weight | kg/pc | 6 |
| Max. Tool Dimension (W/O Adjacent Tools) | mm | 24T : ø80x 250(ø125 x 250) 30T : ø76 x 250(ø125 x 250) |
| General | ||
| Machine Weight | kg | 16,000 |

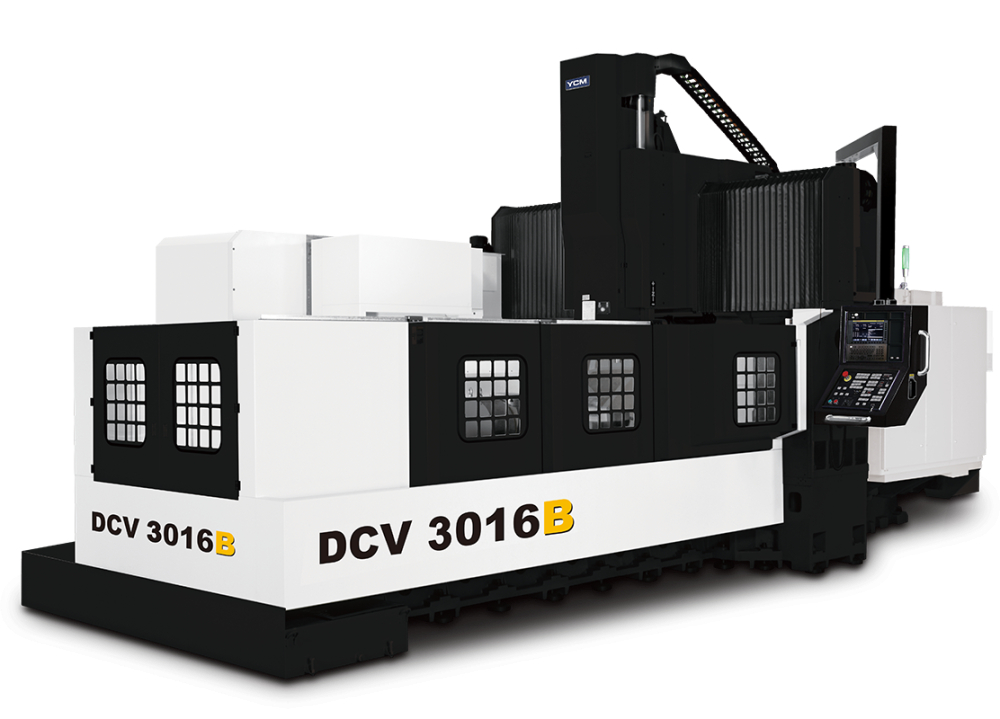

| Product Name | unit | DCV3016B |
| Spindle | ||
| Spindle Speed (Opt.) | rpm | 4,500 (6,000/10,000) |
| Spindle Power (Opt.) | kW | 25(25/45) |
| Spindle Taper (Opt.) | BBT50 | |
| Travel | ||
| X-axis Travel | mm | 3,060 |
| Y-axis Travel | mm | 1,600 |
| Z-axis Travel | mm | 762 (1,016) |
| Distance Between Spindle Nose & Table Top | mm | 200~962 (450~1,212 [ Raised Column 250] / 200~1,216 [ Z-axis Travel 1,016] ) |
| Distance Between Columns | mm | 1,820 |
| Table | ||
| Table Size | mm | 3,260 x 1,500 |
| No. T-slot x Size x Pitch | mm | 9 x 22 x 150 |
| Max. Load on Table | kg | 10,000 |
| Feedrate | ||
| X/Y/Z Rapid Feedrate | m/min. | 20/15/15 |
| Cutting Feedrate | mm/min. | 1~10,000 |
| ATC | ||
| Tool Magazine Capacity (Opt.) | T | 40 (60/120) |
| Tool Weight | kg/pc | 20 |
| Max. Tool Dimension (W/O Adjacent Tools) | mm | ø125 x 350 (ø240 x 350) |
| General | ||
| Machine Weight | kg | 31,000 |
