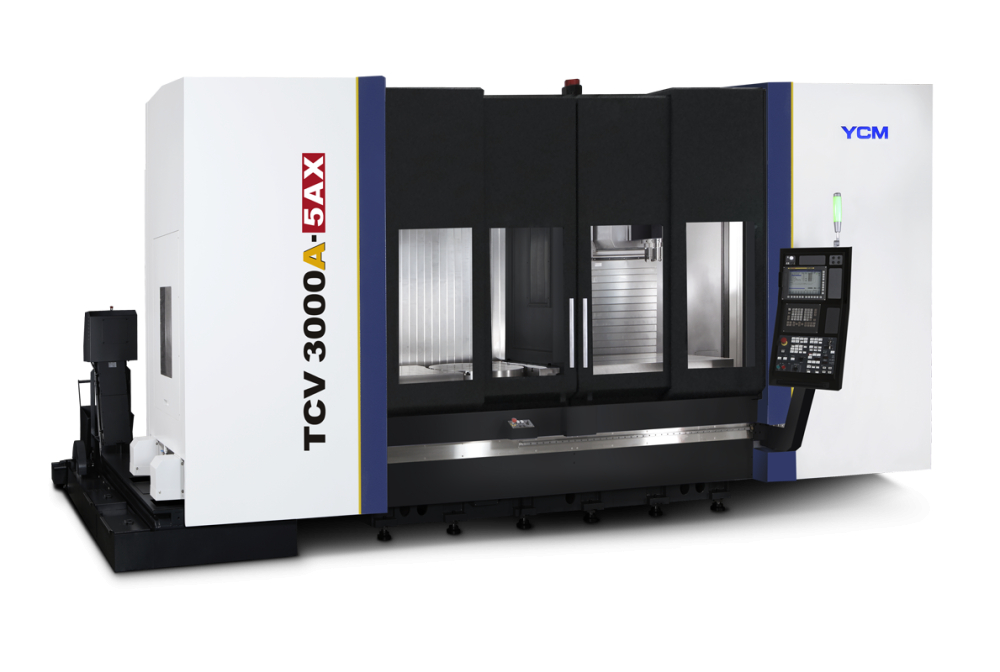

YCM TCV 5AX series
5-Axis Large Traveling Column, Fixed Table VMC's for Long Workpiece.
| Product Name | unit | TCV3000A-5AX |
| Machining Capacity | ||
| Spindle Speed (Opt.) | rpm | 12,000 (15,000 / 16,000 [Big Torque] ) |
| Spindle Power (Opt.) | kW | 25 ( 25/50 )[HDH] |
| Spindle Taper (Opt.) | BBT40 (HSK-A63) | |
| Travel | ||
| X-axis Travel | mm | 3,000 |
| Y-axis Travel | mm | 800 |
| Z-axis Travel | mm | 800 |
| Distance Between Spindle Center and Table Top | mm | 0~800(V);300~1,100(H) (0~800(V);336~1,136(H)[Big Torque] ) |
| A/C - axis | ||
| B - axis | ||
| Swivel Head Degree | Degree | ± 110° (±120° [Big Torque] ) |
| C - axis | ||
| Rotary Table Size | mm | ø800 |
| Max. Rotary Table Load | kg | 500 (1,000 [HDH] ) |
| Table | ||
| Table Size | mm | 3,500 x 800 |
| No. T-slot x Size x Pitch | mm | 7 x 18 x 100 |
| Max. Load on Table | kg | 3,000 |
| Feedrate | ||
| X/Y/Z Rapid Feedrate | m/min. | 40/40/40 |
| Cutting Feedrate | mm/min. | 1~10,000 |
| ATC | ||
| Tool Magazine Capacity (Opt.) | T | 40 (80) |
| Tool Weight | kg/pc | 6 |
| Max. Tool Dimension (W/O Adjacent Tools) | mm | ø76 x 300(ø125 x 300) |
| General | ||
| Machine Weight | kg | 24,700 |
