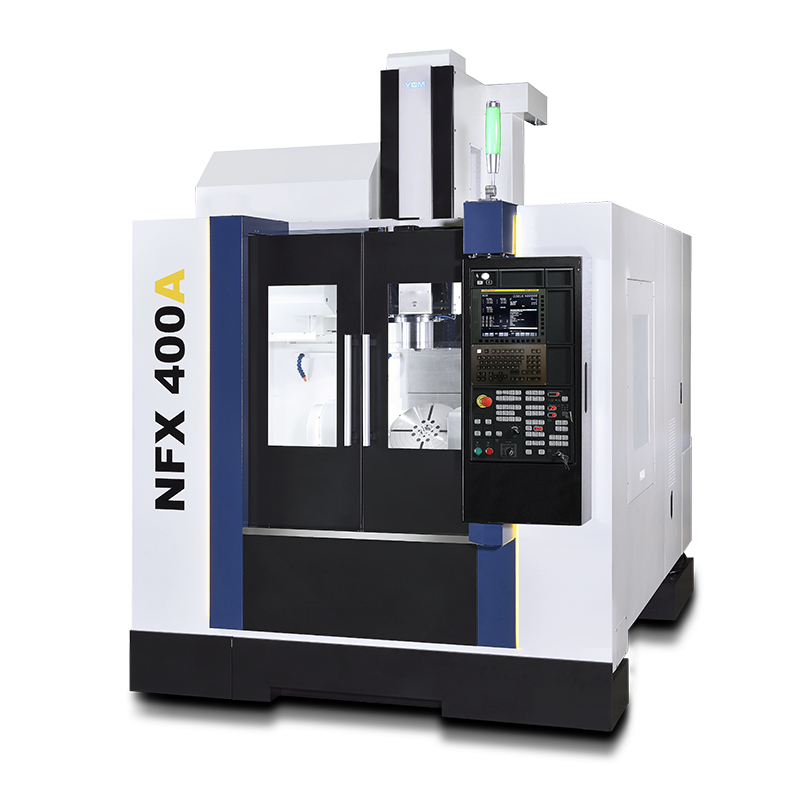

YCM NFX series
High Productivity Full 5-Axis and 5-Face VMC's
| Product Name | unit | NFX400A |
| Machining Capacity | ||
| Spindle Speed (Opt.) | rpm | 12,000 ( 12,000/15,000 ) |
| Spindle Power (Opt.) | kW | 18.5 ( 25/25 ) |
| Spindle Taper (Opt.) | BBT40 | |
| Travel | ||
| X-axis Travel | mm | 650 |
| Y-axis Travel | mm | 520 |
| Z-axis Travel | mm | 480 |
| Distance Between Spindle Center and Table Top | mm | 70~550 |
| A/C - axis | ||
| A-axis | Degree | 150˚ ( 30˚/ -120˚) |
| C-axis | Degree | 360˚ |
| B - axis | ||
| C - axis | ||
| Table | ||
| Table Size | mm | ø350 |
| No. T-slot x Size x Pitch | mm | 12 |
| Max. Load on Table | kg | 200 |
| Feedrate | ||
| X/Y/Z Rapid Feedrate | m/min. | 36/36/36 |
| Cutting Feedrate | mm/min. | 1~20,000 |
| ATC | ||
| Tool Magazine Capacity (Opt.) | T | 24 (30 / 40 / 60 ) |
| Tool Weight | kg/pc | 6 |
| Max. Tool Dimension (W/O Adjacent Tools) | mm | ø125 x 280 |
| General | ||
| Machine Weight | kg | 6,200 |
