5-Axis Machining Centers

DCV 5AX series

YCM DCV 5AX series

5-Axis Double Column Machines for Extra-Large Parts and Precision Contouring.

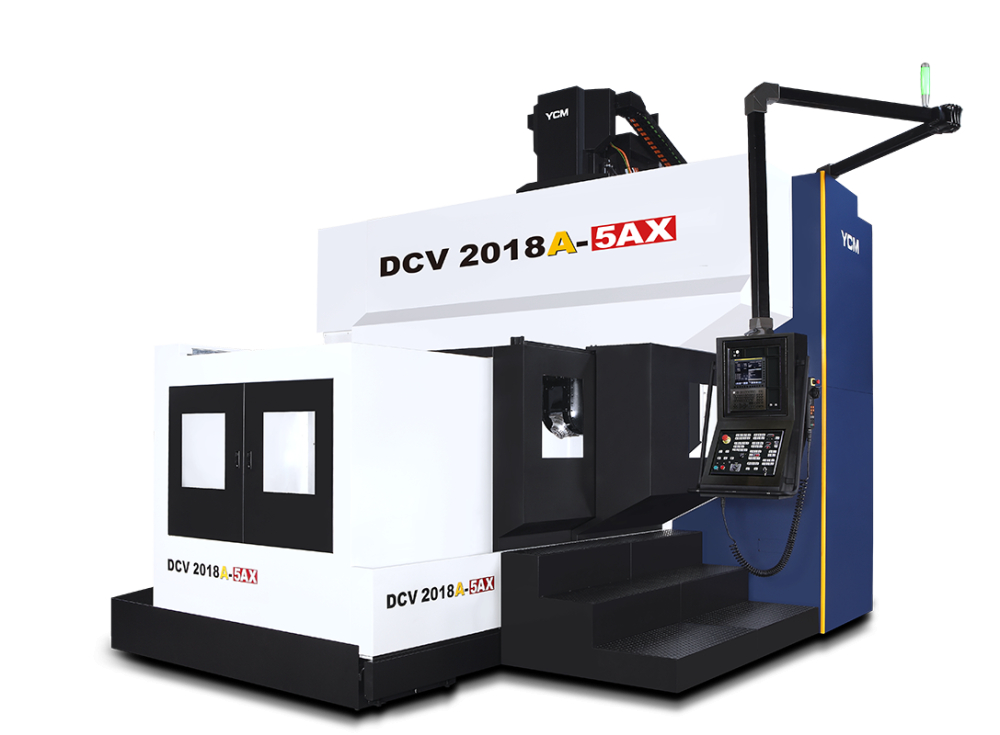

DCV2018A-5AX Request a Quote
Product Name unit DCV2018A-5AX

Machining Capacity
Spindle Speed (Opt.) rpm 18,000
Spindle Power (Opt.) kW 70
Spindle Taper (Opt.)   HSK A63

Travel
X-axis Travel mm 2,200
Y-axis Travel mm 2,400
Z-axis Travel mm 762(1,016)
Distance Between Spindle Center and Table Top mm 30"Vertical: 150-912 Horizontal: 430-1192 / 40" Vertical: 150-1116 Horizontal: 430-1446

A/C - axis
C-axis Degree ±360

B - axis
Swivel Head Degree Degree ±105

C - axis

Table
Table Size mm 2,000×1,500
No. T-slot x Size x Pitch mm 8×22×180
Max. Load on Table kg 8,000

Feedrate
X/Y/Z Rapid Feedrate m/min. 24 / 24 / 20
Cutting Feedrate mm/min. 1~20,000

ATC
Tool Magazine Capacity (Opt.) T 40 ( 60 / 120 )
Tool Weight kg/pc 6
Max. Tool Dimension (W/O Adjacent Tools) mm ø 76 x 300(ø125 x 300)

General
Machine Weight kg 28,000

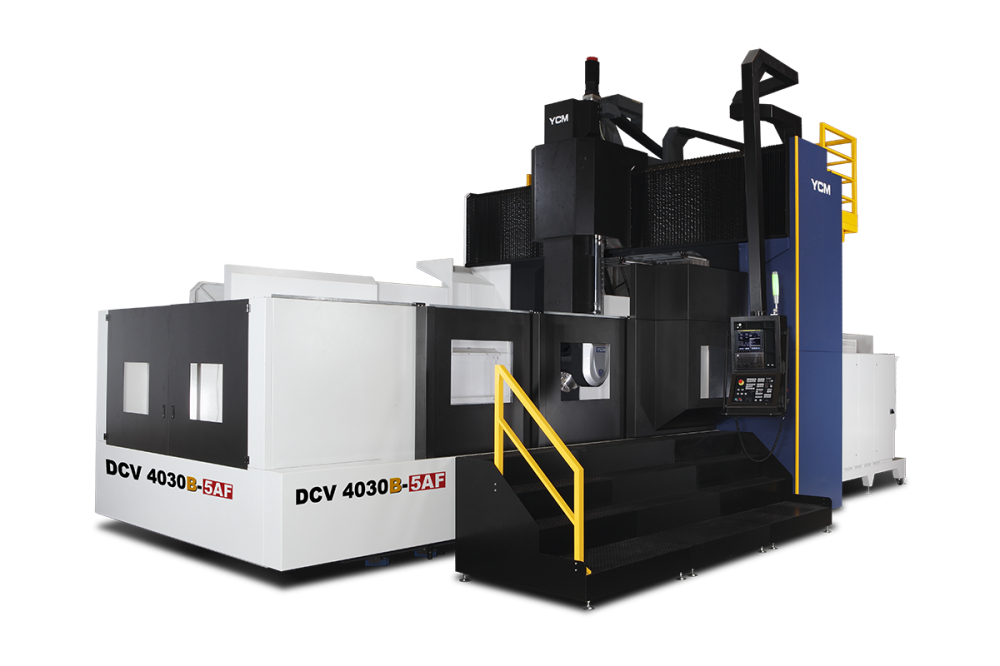

DCV4030B-5AF Request a Quote
Product Name unit DCV4030B-5AF

Machining Capacity
Spindle Speed (Opt.) rpm 10,000
Spindle Power (Opt.) kW 43
Spindle Taper (Opt.)   HSK A100

Travel
X-axis Travel mm 4,065
Y-axis Travel mm 3,500
Z-axis Travel mm 1,016
Distance Between Spindle Center and Table Top mm Vertical: 310~1,326 Horizontal: 650~1,666

A/C - axis
C-axis Degree ±180

B - axis
Swivel Head Degree Degree ±110

C - axis

Table
Table Size mm 4,100 x 2,400
No. T-slot x Size x Pitch mm 11 x 28 x 200
Max. Load on Table kg 20,000

Feedrate
X/Y/Z Rapid Feedrate m/min. 20/20/15
Cutting Feedrate mm/min. 1~15,000/1~15,000/1~10,000

ATC
Tool Magazine Capacity (Opt.) T 40 (60/120)
Tool Weight kg/pc 13
Max. Tool Dimension (W/O Adjacent Tools) mm ø125 x 350 (ø240 x 350 )

General
Machine Weight kg 58,000
